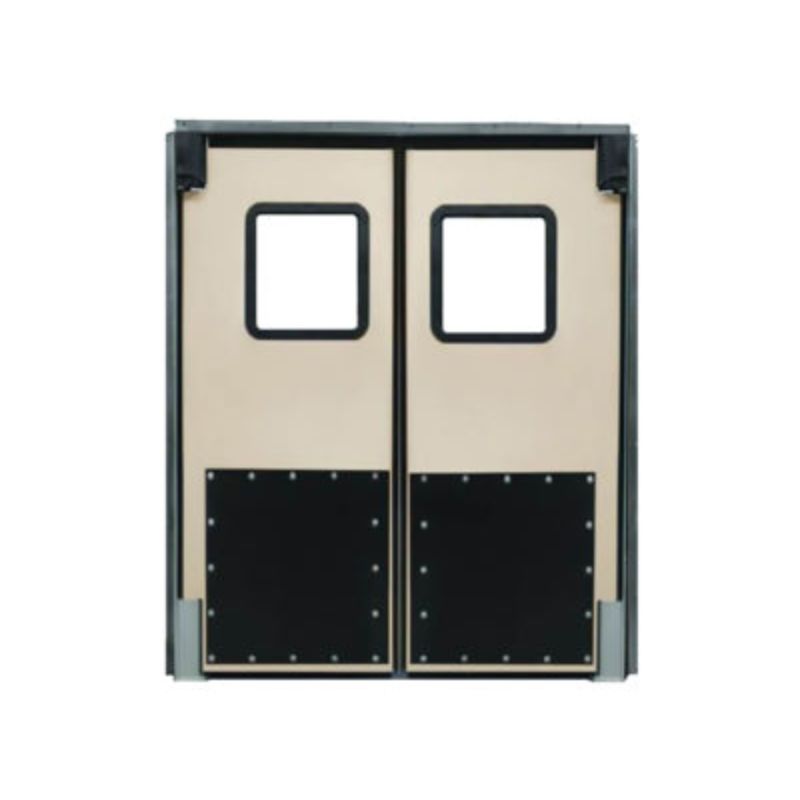

Chase Durulite Retailer Door
Chase Doors, founded in 1932, is recognized as a global leader in the manufacture of high-quality, reliable doors for a variety of industries. Specializing in customized solutions, Chase Doors offers a diverse range of products including impact traffic doors, service doors, and strip curtains. Their commitment to innovation and customer satisfaction has solidified their reputation as a trusted provider for businesses seeking durable and efficient door systems. Chase Doors continues to lead the market by integrating the latest technology and design standards into their products, ensuring that they meet the evolving needs of their clients worldwide.
Durulite Retailer doors are built from rotationally molded polyethylene, ensuring extreme durability and the ability to endure the frequent wear and tear found in high-traffic areas between sales floors and back rooms, as well as walk-in cooler openings in busy retail environments.
These doors are recognized for their long-lasting value and are particularly well-suited for supermarkets, retail stores, institutions, restaurants, and food service operations. They offer effective visual separation, act as a sound barrier, and provide thermal isolation. Designed to meet all USDA sanitation standards, these doors are also NSF certified, making them an ideal choice for environments where cleanliness and hygiene are priorities.
How To Order
Durulite Retailer Bi-Parting
Durulite Retailer Single Door
- Download the Quote Request Form: Click to download our quote request form provided in PDF format.
- Complete the Form: Read the PDF carefully and fill out the form with the required details to ensure accurate processing of your request.
- Submit the Form: On the Request a Quote page, fill out the required information, upload the completed PDF if needed, and submit your request.
Door Data
Product Brochures
Chase Express
Senneca Traffic Door Brochure
Drawings
Retailer 90x90 Parts Breakdown
Retailer 180x90 Parts Breakdown
Specs
Durulite Retailer Hardware Location
Durulite Retailer CSI Specs
Install Instructions
Adjustable Lower Hinge Guard Installation Instructions
Bumper Installation Template
Installation Instructions for Extended Openings
Retailer 180 Hardware Placement
Retailer Post Installation Instructions
Retailer and R25 Spring Assist Installation
Maintenance Manuals
Durulite Retailer Manual
Durulite Retailer Maintenance
Features
Door Panel
This door is lightweight and features reliable opening and closing mechanisms. It has an overall panel thickness of 1-1/2 inches, a skin thickness of 1/8 inch, and can be customized up to dimensions of 8' x 10'. The rotationally molded polyethylene outer skin maintains its properties down to -40°F.
Door Sizes
-
Single:
- Width: Minimum 18 inches, Maximum 48 inches
- Height: Minimum 48 inches, Maximum 120 inches
-
Pair:
- Width: Minimum 36 inches, Maximum 96 inches
- Height: Minimum 48 inches, Maximum 120 inches
Insulated Core
Features a high-density, Non-CFC urethane core foamed-in-place, creating a strong bond with the outer skin. This provides sound reduction and excellent thermal insulation with an R-value of 9.86.
Internal Reinforcement
A 1-inch diameter hinge post is molded into the door and extends the full length of the panel for structural stability. The hinge post fits into the jamb guard, and the leading edge is further reinforced with an aluminum extrusion for added support.
Gasketing
The door uses replaceable perimeter edge gasketing to minimize energy transfer between environments. It comes standard with gasketing along the leading, back, and bottom edges. Partial gasketing options are available.
Upper Hinge
Features a patented v-cam hinge system that allows movement up to 120 degrees in each direction.
Lower Hinge Assembly
This assembly secures the lower hinge post, preventing horizontal door movement and protecting the hinge post from impact damage with its lower hinge guard.
Window
Equipped with large, virtually scratch-resistant polycarbonate windows.
Options
- Additional Windows
- Bumpers
- Hinge Guard
- Impact Plate
- Cart Guards/Rub Rails
- Double Pane Window
- Kick Plate
- Push Plate and Pull Handle
- Hold Open Device
Certifications
- NSF Tested and Certified
- USDA Accepted
