Technical Specs
| Function |
60 Vestibule Lock
|
| Function Family |
Vestibule |
| ANSI Function |
F88 - Apartment Exit
|
| Lever/Knob Design |
SPA Sparta Lever
|
| Lever/Knob Design Family |
Curved Return Lever |
| Rose/Escutcheon Design |
3-7/16" Rose Diameter
|
| Rose/Escutcheon Dimensions |
3-7/16" |
| Cylinder Type |
Cylinder
|
| Num Pins |
6 |
| Key(s) |
Cut |
| Num of Keys |
2 |
| Handing |
Non-handed |
| Door Thickness |
1-5/8 In. to 2-1/8 In. |
| Std. Latch Number |
13-247 |
| Std. Latch Type |
Deadlatch |
| Std. Latch Backset Dim |
2-3/4 In. |
| Latch Bore Diameter |
1 In. |
| Lock Face Size |
1-1/8 In. x 2-1/4 In. |
| Bolt Projection |
1/2 In. |
| Bore Hole Diameter |
2-1/8 In. |
| Std. Strike Number |
10-025 |
| Std. Strike Type |
ANSI Strike |
| Std. Strike Height |
4-7/8 In. |
| Std. Strike Width |
1-1/4 In. |
| Screws |
Wood/Machine Screws |
| Product Type |
Cylindrical Lock |
Product Specs
| Manufacturer |
Schlage |
| SKU |
ND60PD SPA |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
Mexico |
| Unit of Measure |
Each |
| UL Listing Type |
UL/cUL Listed |
| ANSI Number |
ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified |
Yes |
| Limited Warranty |
10 Years |
| Fire Rated |
3 Hours {A} |
| ADA Compliance |
Yes |

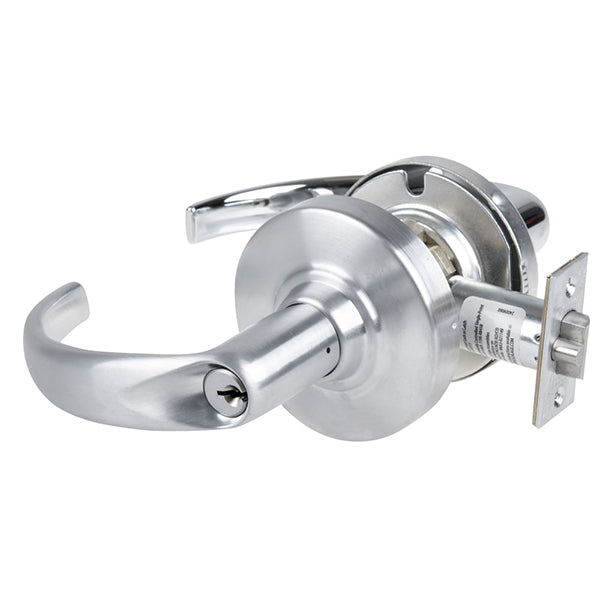

The Schlage ND60PD-SPA is a Cylindrical Vestibule Lock, with an Sparta Lever, that has a Schlage C Keyway, is Keyed Different, comes with 2 Keys, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in multiple finishes.
Vestibule Function- Latch retracted by key from outside when the outside lever is unlocked by key in inside lever. Inside lever always free for immediate egress.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
